Period photos of parts owners fitted to their ZX2s. Click any photo to enlarge it. For engine and drivetrain upgrades, see the notes on the engine page.

Confirmed two or more sources agree Reported one source or owner reports Disputed sources conflict

These photos come from one owner’s mid-2000s build of a green ZX2. Except where noted, part makers aren’t known, so treat the captions as descriptions, not part listings. Owner photos For headers, cams and turbo builds, see Engine and drivetrain. For the S/R’s Ford Racing airbox, see S/R specs.

Sway bar

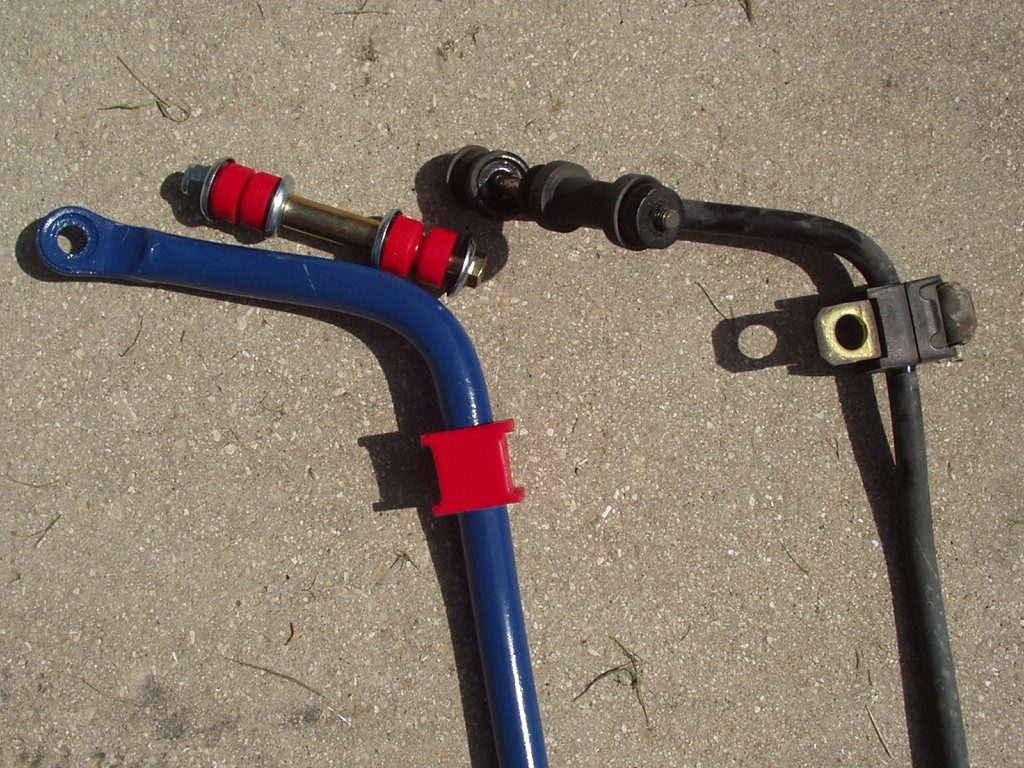

Blue 21 mm aftermarket sway bar with red polyurethane bushings and end links, laid next to the thinner black stock sway bar
A 21 mm aftermarket bar (blue) next to the stock bar (black)

For comparison, Ford’s 1999 S/R spec sheet lists the stabilizers at 1.0 in front and 0.51 in (about 13 mm) rear. Ford spec sheet

Intake

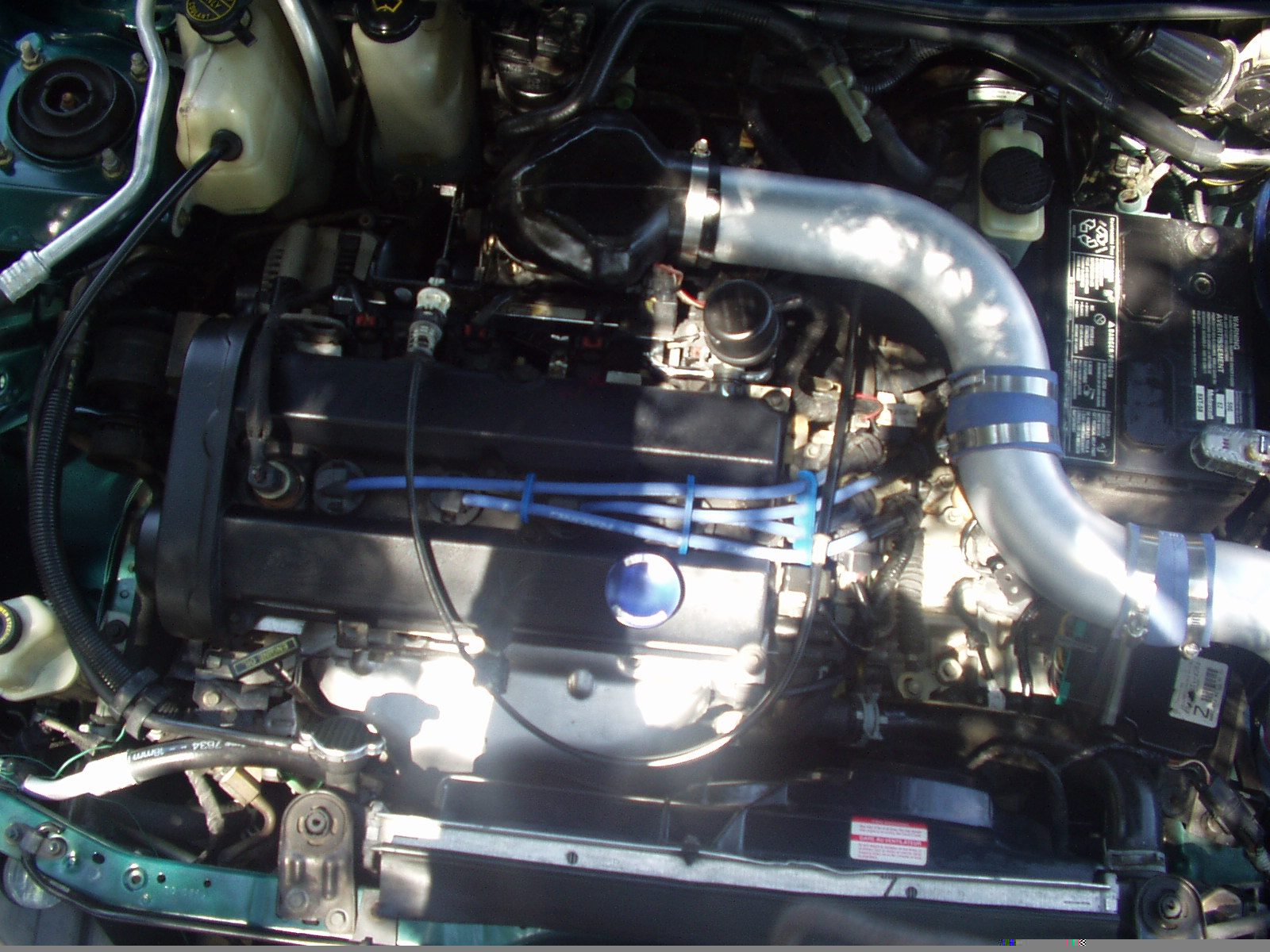

ZX2 engine bay with a silver aftermarket intake tube, blue silicone couplers and blue spark plug wires
An FZ Racing intake tube

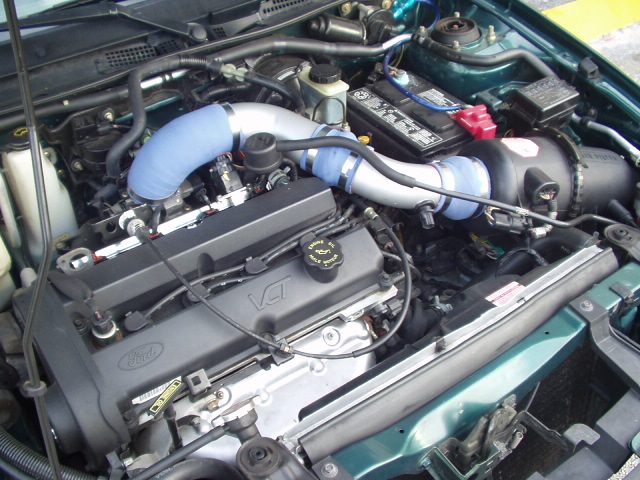

Engine bay of a green ZX2 with the Roush intake tube fitted
The Roush tube from the 1999 S/R

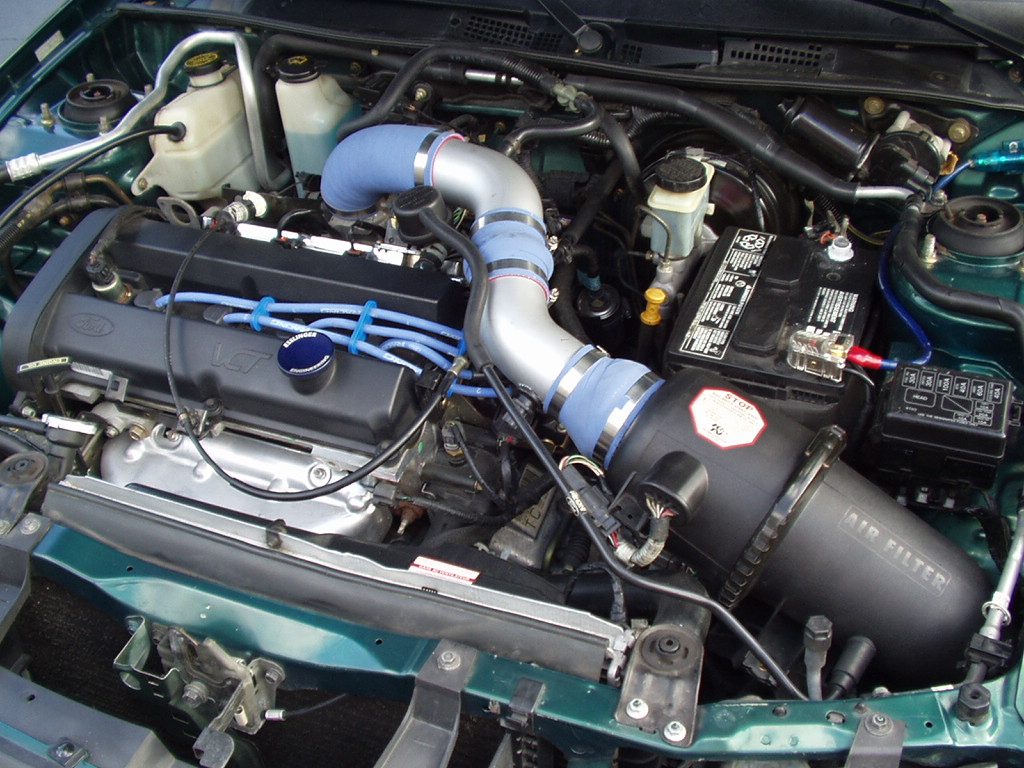

Green ZX2 engine bay with a silver intake tube, blue couplers and an aftermarket airbox
The same car with the airbox from the S/R specs page

Center armrest

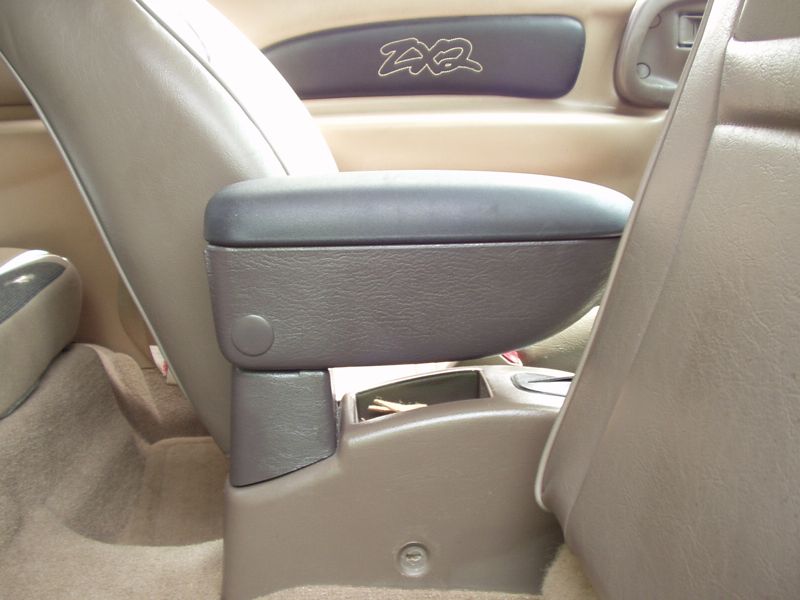

Ford accessory center armrest mounted between the front seats of a ZX2 with tan leather, a ZX2 logo on the door panel behind
Ford's accessory armrest fitted between the front seats
The armrest lid flipped open, showing a storage bin
Lid open, with a storage bin

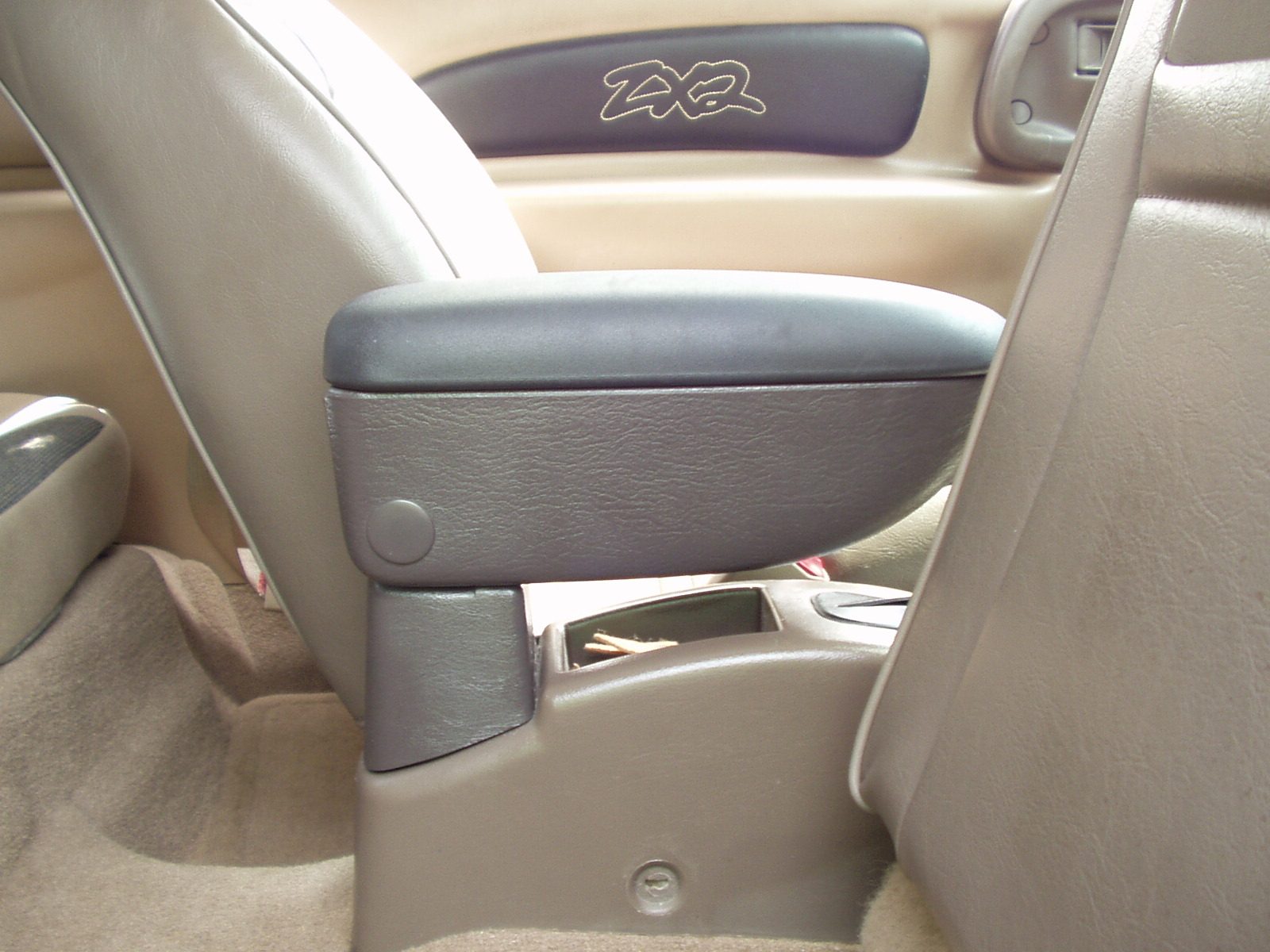

The armrest from the side, closed
From the side

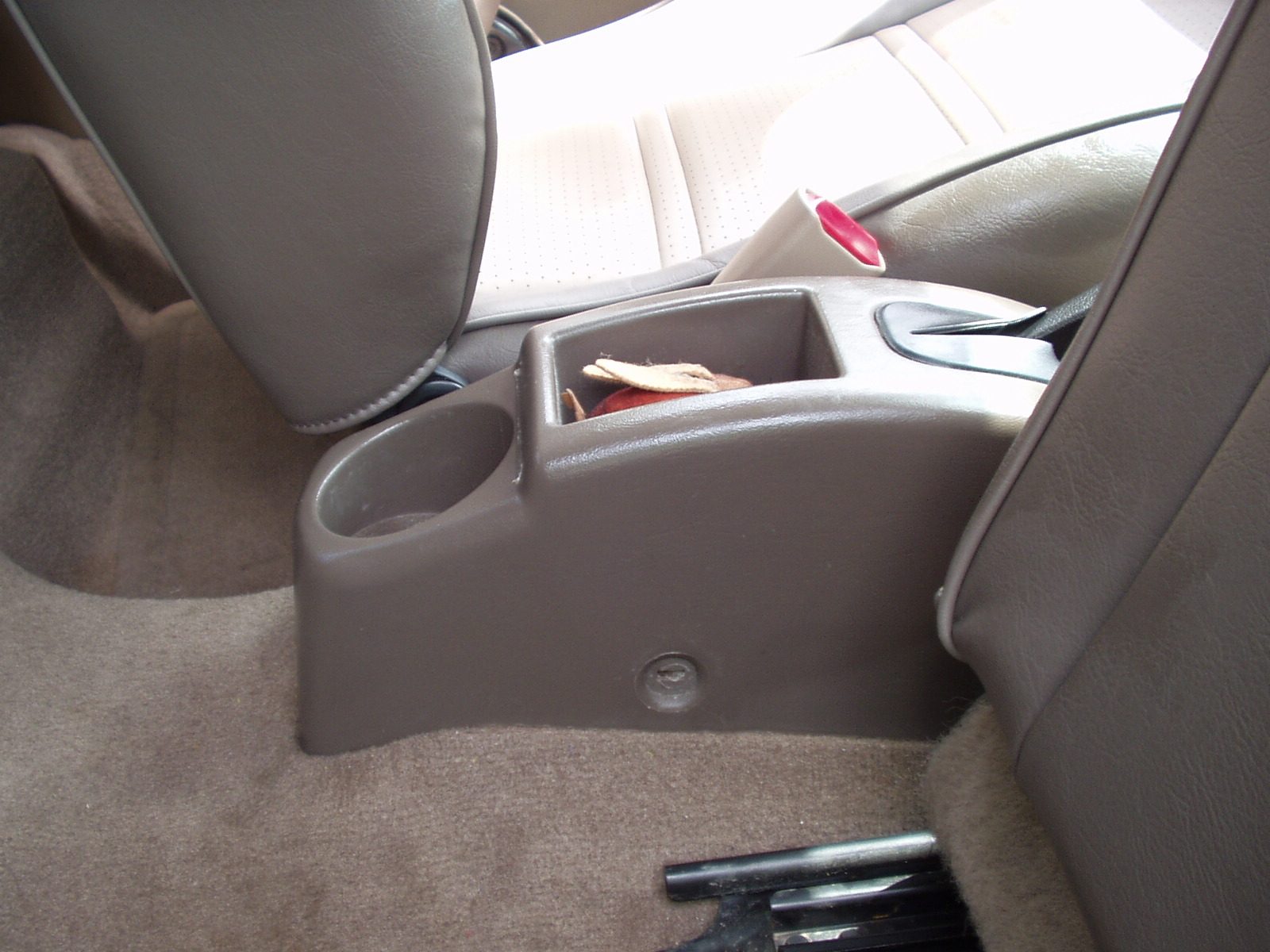

The ZX2 center console with the armrest removed, showing the cup holders and mounting area
The console without it

This is Ford’s Armrest/Console, a dealer accessory for the Escort and ZX2. It mounts between the front seats behind the cup holders, and the padded lid flips up over a storage bin. Ford accessory books

Item Detail
Base part number 54045A36
Colors (1998) Medium Graphite, Saddle and Willow, to match the interior
Price $107.14 (2001 book), $110.90 (2002 book)
Listed 1998–2003 Ford accessory books

The 1998 book calls it “uniquely styled” with “an Original Equipment appearance” and a phone cradle under the lid. The same base part number was also listed for the Focus. See the 1998, 1999, 2001 and 2002 accessory books.

Photos: ZX2 Motorsports collection.
